PRODUCTS
-
- Valve Gate System
-

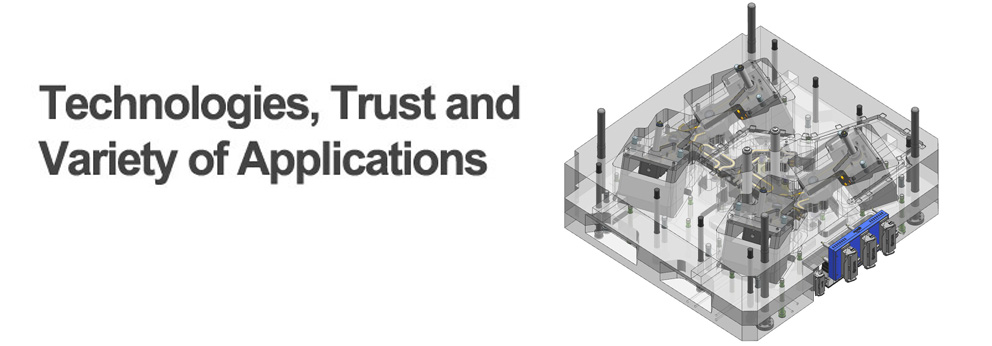

This pneumatic gate system is variously applicable to many kinds of products to achieve economical price, fast delivery, and high-quality after sales service based on technological and economic feasibility. With this system, the injection amount of each single gate can be controlled by sequence controlling.
-

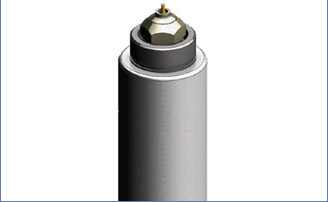

Easy Valve System
Product property: This is ERUMTECH’s typical high-quality pneumatic valve system which is suitable for both small and large products.
Nozzle series: EV-20,25,35,45
Types of nozzle tips: MAA, MAE, MCC, MCA, MCT, MGC, MGT, MPC, MPA, MPT, MNC, MNT, MFC, MFA, MFT
-
Sharp Valve System
Product property: This makes neat gate mark even on engineering resin products. Pins and gates of this system have same concentricity and truepoint, so the system is suitable for quick injection molding and mass production.
Nozzle series: SV-18,20,25,35
Types of nozzle tips: MCA, MCC, MGA, MGC, MPA, MPC, MFA, MFC
-
Hydraulic Valve System
Product property: In this valve system, valve gate opens and shuts by oil pressure. This system is suitable for both low and high pressure injection molding.
Nozzle series: HV-35,45
Types of nozzle tips: MAA, MAE, MCC, MCT, MGC, MGT , MPC, MPT, MNC, MNT, MFC, MFT
